PayPal Verified Merchant Single Key Sample Packs: $1.50 per 5 pcs • Shipping: $2.50 base (+$0.50/extra pack, Max $10 shipping for 100 & 200 pcs)

Instant PayPal Checkout Available

Conductive Silicone Rubber Keys & Zebra Connectors

Single tactile elastic push buttons with embedded conductive carbon pills for direct PCB contacts. Buy ready-to-ship packs directly via PayPal or request high-volume custom production runs.

Buy Packs ($1.50 / 5 pcs) Bulk Production RFQ

$1.50 Pack of 5 Pieces

$2.50 Base Shipping

Max $10 Capped Shipping (100 & 200 pcs)

Cross-Slot 11x5mm Silicon Rubber Single Key

5 PCS = $1.50

Accepted Payment: PayPal (kelvinly@yahoo.com)

Shipping Rates: $2.50 base (Max $10 for 100/200 pcs)

Packaging: Anti-static sealed packs

Immediate PayPal Checkout

Silicon Rubber Keys — Direct Buy

Pricing: $1.50 per 5 pcs. Shipping is $2.50 base (+$0.50 per extra 5 pcs), capped at a maximum of $10 for 100 pcs and 200 pcs orders.

$1.50 / 5 pcs #SK-201

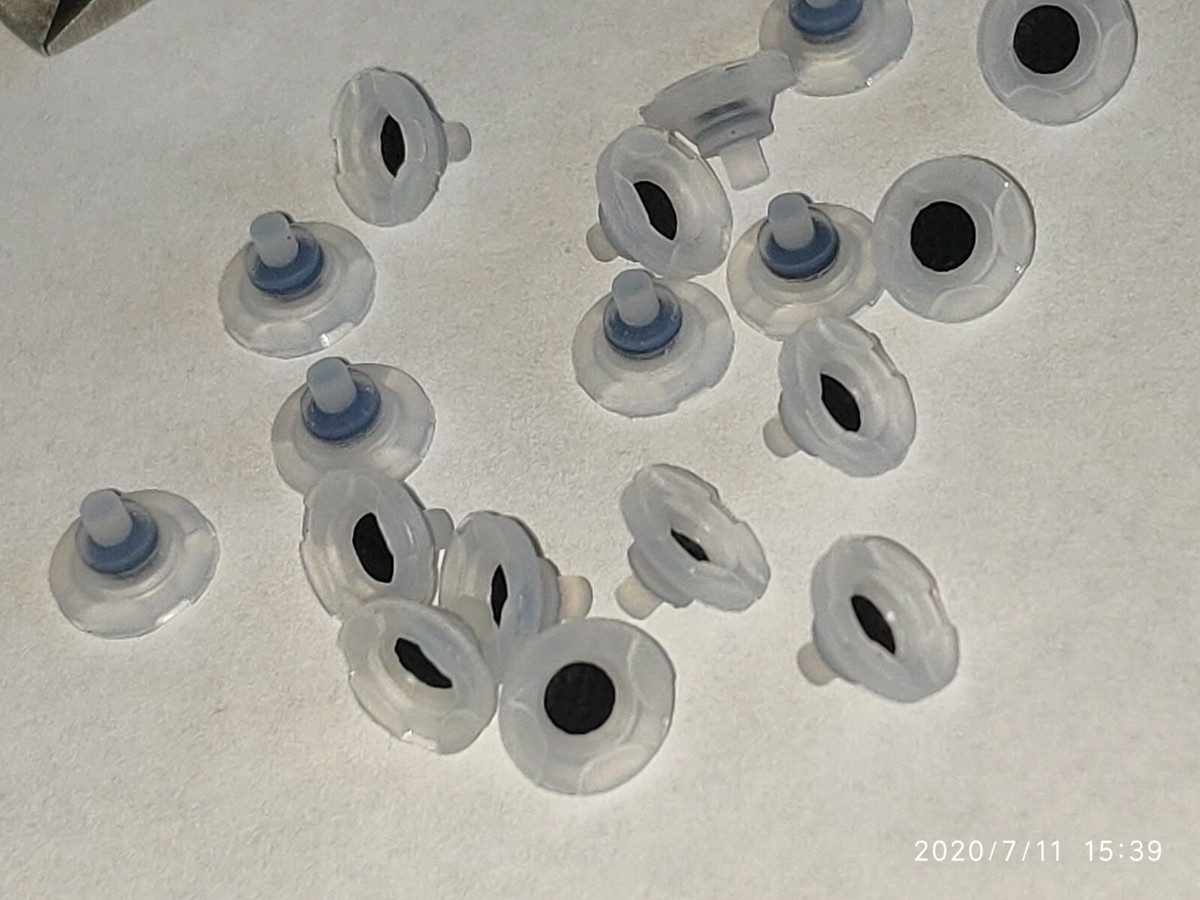

Standard Round Single Key

Circular tactile dome with bottom conductive carbon pill for momentary PCB contact.

Max $10 shipping on 100/200 pcs

Select Quantity:

$1.50 / 5 pcs #SK-1105C

11x5mm Cross-Slot Locking Key

Cross gap molded in top stem to lock custom plastic keycaps. 11mm base diameter, 5mm height.

Max $10 shipping on 100/200 pcs

Select Quantity:

$1.50 / 5 pcs #SK-0955

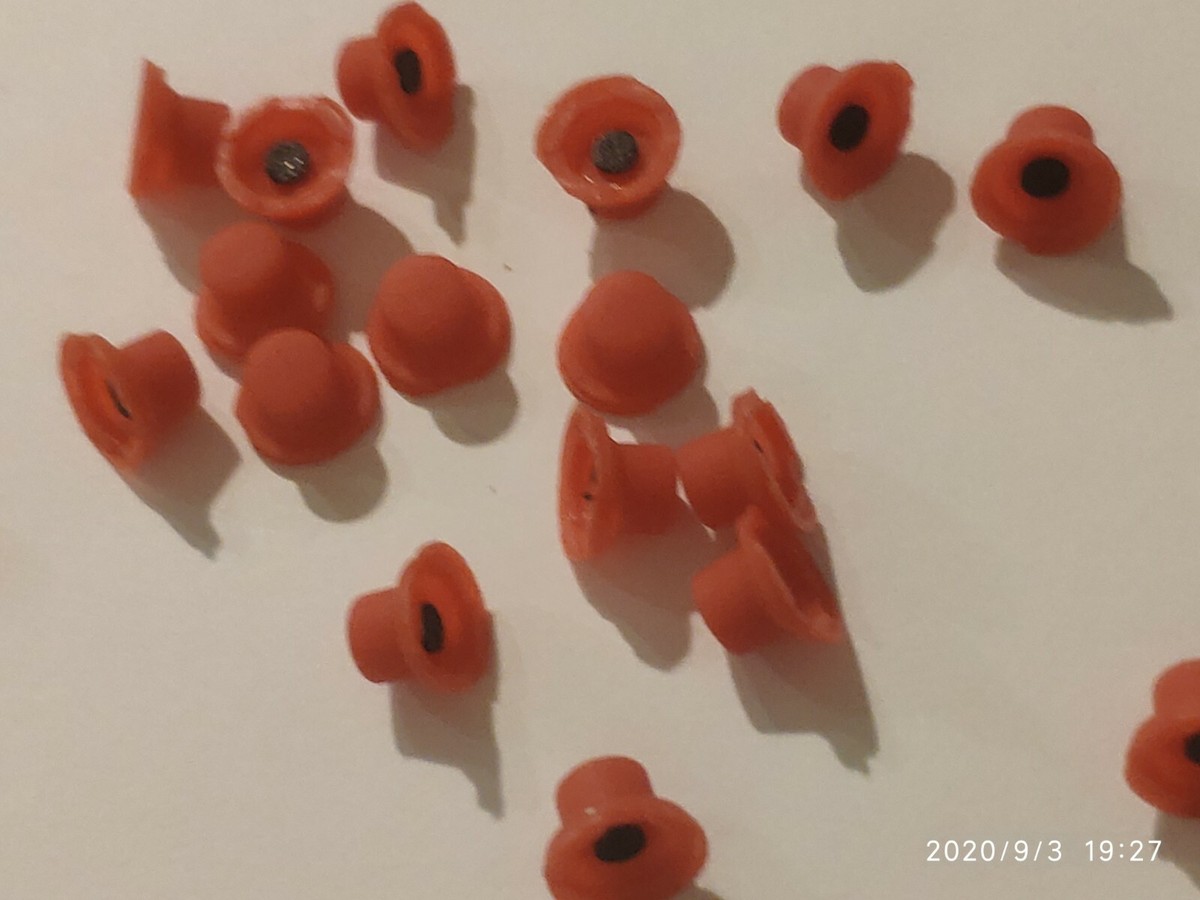

9 x 5.5mm Single Push Button

Compact footprint with 5.5mm top diameter, 9mm bottom flange base, and responsive rebound.

Max $10 shipping on 100/200 pcs

Select Quantity:

$1.50 / 5 pcs #SK-1207

12 x 7mm Flanged Push Button

Wide 12mm circular skirt for stable resting on PCB surface without lateral wobble during actuation.

Max $10 shipping on 100/200 pcs

Select Quantity:

$1.50 / 5 pcs #SK-0605

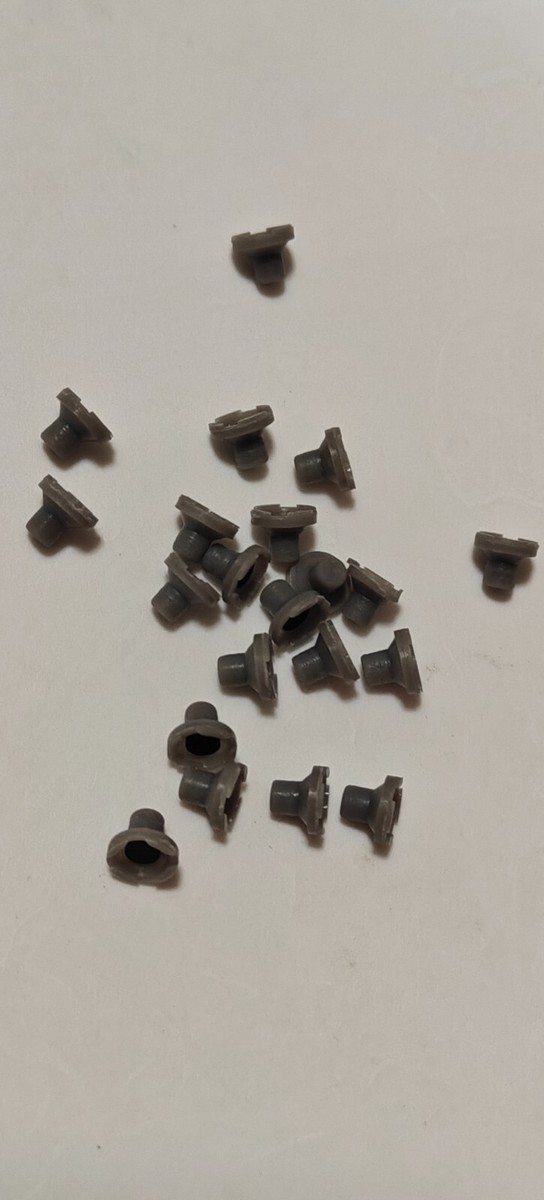

6 x 5 x 3mm Micro Key

Ultra-compact button for handheld devices, remote controllers, and space-constrained PCB housings.

Max $10 shipping on 100/200 pcs

Select Quantity:

$1.50 / 5 pcs #SK-1253T

12 x 5.3mm Translucent Key

Translucent optical-grade silicone with a 4.5mm top hole designed for LED illumination pass-through.

Max $10 shipping on 100/200 pcs

Select Quantity:

$1.50 / 5 pcs #SK-1135

11 x 3.5mm Low-Profile Button

Slim 3.5mm height single key for compact enclosures where vertical clearance is limited.

Max $10 shipping on 100/200 pcs

Select Quantity:

$1.50 / 5 pcs #SK-1207H

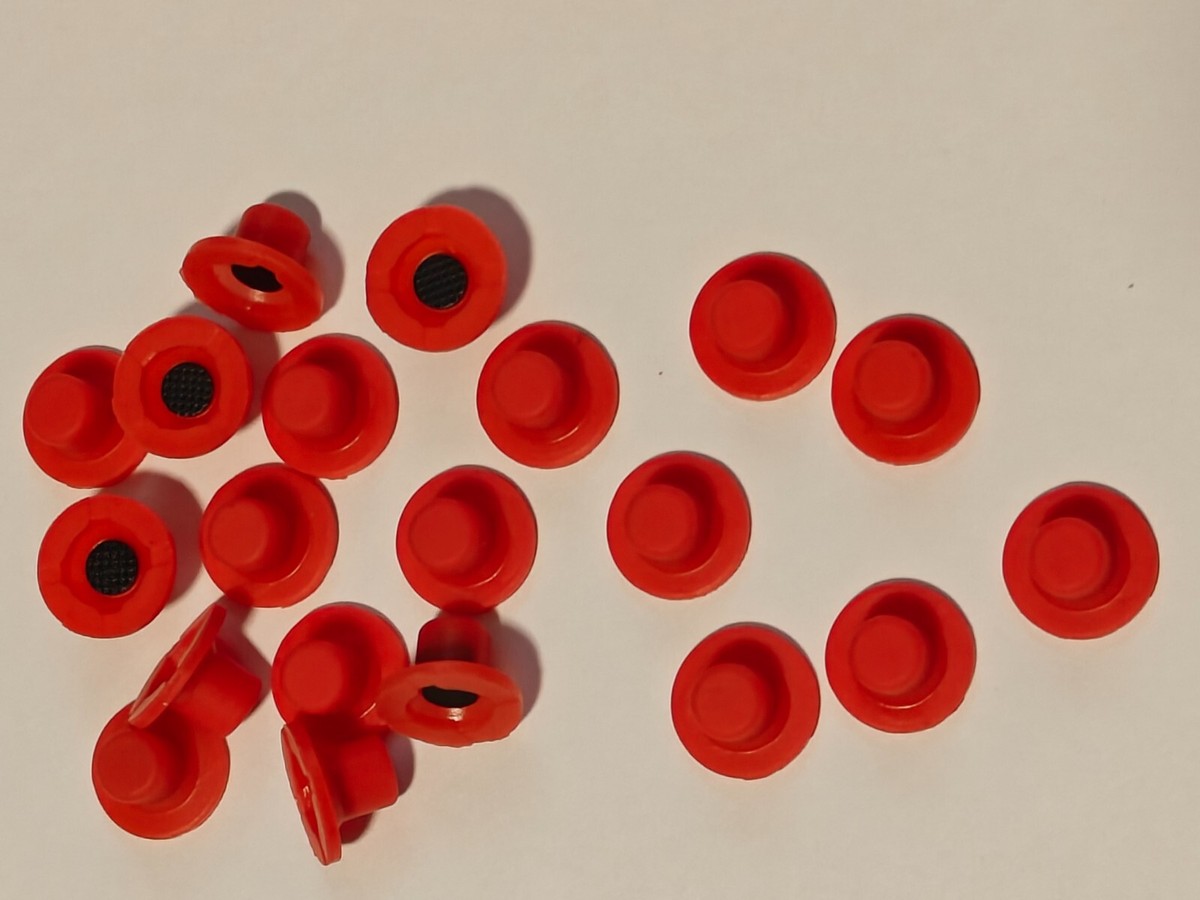

12 x 7mm High-Tactile Single Key

High-durometer silicone elastic web providing pronounced tactile click feedback on actuation.

Max $10 shipping on 100/200 pcs

Select Quantity:

$1.50 / 5 pcs #SK-900X

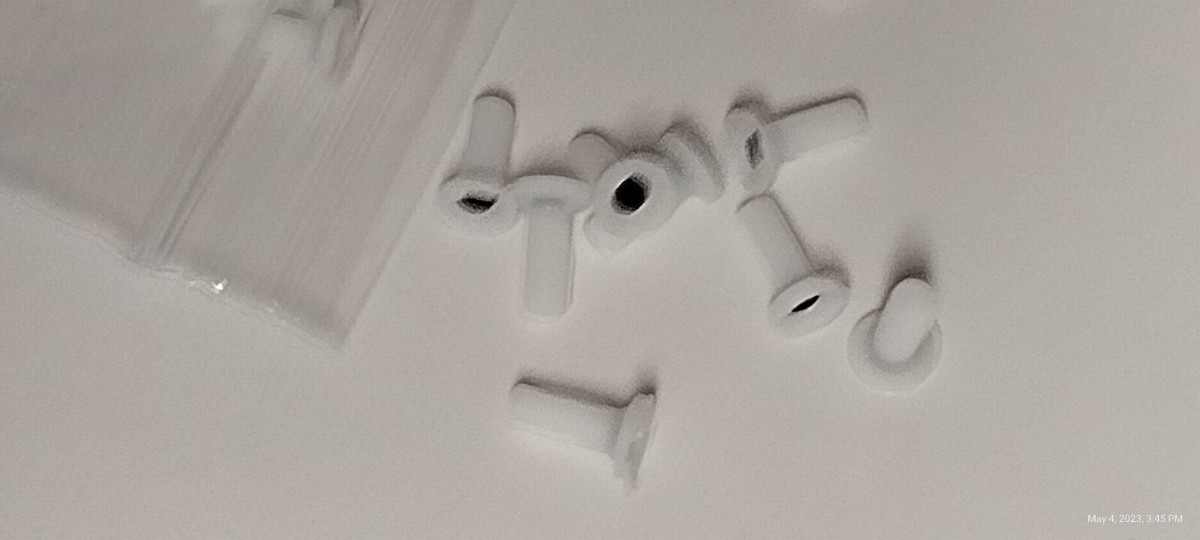

Precision Tactile Silicone Button

Extended longevity elastic formulation (>10M cycles) designed for demanding industrial interfaces.

Max $10 shipping on 100/200 pcs

Select Quantity:

Interconnect Technology

Silicone Elastomeric Zebra Connectors

Zero-solder elastomeric strips designed for shock-proof, solderless connections between LCD panels and printed circuit boards.

YL / YS SERIES

Carbon Zebra Strips (LCD to PCB)

Request Zebra Quote

Alternating precision layers of conductive carbon silicone and non-conductive insulating silicone, flanked by soft sponge rubber for uniform compression force.

Fine Pitch Spacing Available in 0.18 mm, 0.10 mm, and 0.05 mm ultra-fine pitch.

No Soldering Heat Direct physical contact prevents thermal damage to LCD glass.

Vibration Dampening Absorbs continuous mechanical shock in automotive & industrial use.

Engineered Tolerances

rubberBit.com Technical Matrix

Specification Parameter	Silicone Rubber Single Keys	Zebra Elastomeric Connectors
Operating Temperature	-40°C to +180°C	-40°C to +125°C (High-Temp up to +150°C)
Contact Resistance	< 100 Ω (Conductive Carbon Pill)	100 Ω - 1000 Ω (Conductive Carbon Silicone)
Hardness (Shore A)	40° to 70° Shore A (±5°)	45° to 65° Shore A (Core)
Pitch Options	Single Point (Custom Spacing in Arrays)	0.05 mm, 0.10 mm, 0.18 mm fine pitch
Life Expectancy	> 10,000,000 Actuations	Non-fatiguing elastomeric compression

Bulk & Custom Orders

High-Volume or Custom Tooling RFQ

For wholesale production (500 to 500,000+ pcs) or custom keypad tooling, submit your specifications below.

Your Name *

Company Email *

Product Category

Estimated Quantity

Dimensions & Technical Requirements

NDAs signed upon request before CAD exchange.
